45 degree black pipe Elbows for oil and gas
- 45 degree pipe elbows
- CS, MS
- water, oil and gas
- Surface treatment
- blasting, black painting, anti-rust oil
- Bevel ends
45 degree black pipe Elbows in pipelines for oil and gas

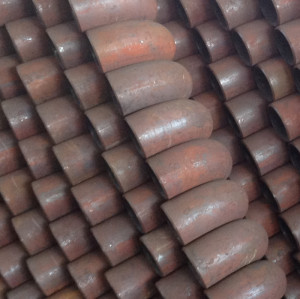

Warehouse of JS FITTINGS

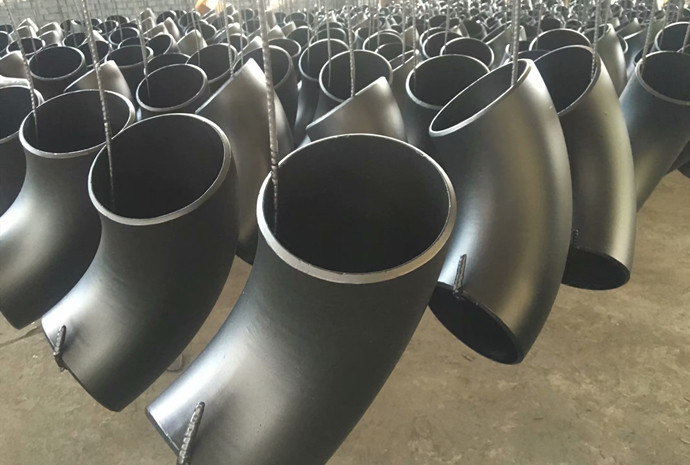

Output of JS FITTINGS
The monthly production capacity of JS pipe fitting are about 800 tons ,which include 45°/90°/180°elbow,concentric /eccentric reducer and cap .all these produced according to the international standard of ANSI / ASME, DIN, JIS, BS, GOST, EN1092, AWWA, SABS . Advanced production lines enable us to meet customers’ different requirements and provide best in quality products.
Specification of JS FITTINGS seamless Elbows

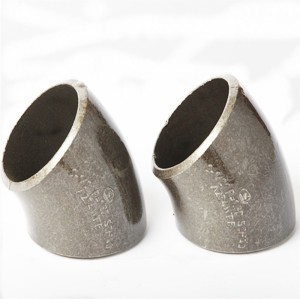

45 degree carbon steel ELBOW
The function of a 45° elbow is the same as a 90° elbow, but the measurement of dimensions is different to that of the 90° elbow.
The radius of a 45° elbow is the same as the radius of the 90° LR (1.1/2D). However, the center to face dimension is not equivalent to the radius as in 90° LR elbows. This is measured from each face to the point of intersection of the center lines perpendicular to each other, distances B on the image. This is due to the smaller degree of bend. Short radius 45° elbows are not available.
ANSI B 16.9 45 Degree Carbon Steel Elbows of JS FITTINGS used for Ship Biulding
Model : 45 degree pipe elbows
