Flanges within the same standard can either be flat (commonly cast iron, ductile iron) or raised face (commonly cast steel and stainless steel). These flange tables cover the critical flange dimensions to help identify what standard you have.

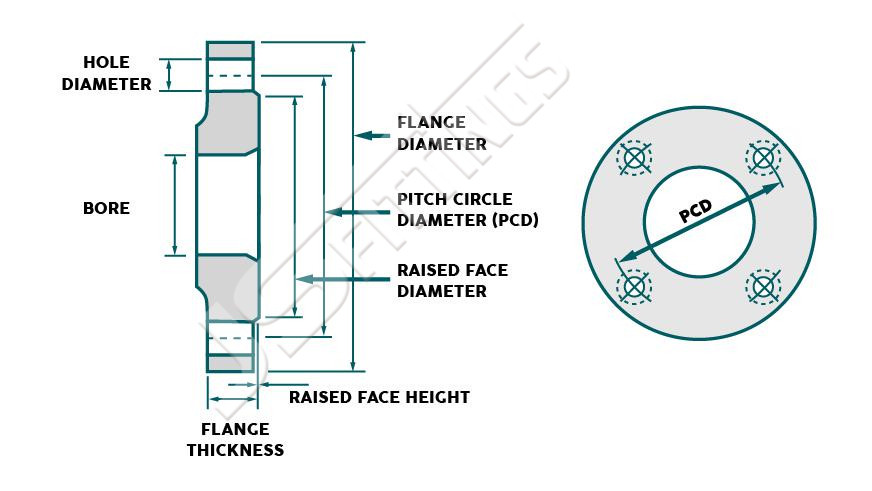

Critical flange dimensions help to identify the standard.


Pipe Size – Pipe flanges also have a corresponding pipe size, generally according to accepted standards.



Outside Diameter of Flange (OD) – this is measured from outer edge to opposing outer edge.



Pitch Circle Diameter (PCD) – this is a diameter that measures from the center of bolt hole to opposing bolt hole.



Flange Thickness – this measures only the thickness of the attaching outer rim, and does not include the part of the flange that holds the pipe.
