Flexible Metal Hose Pipe Steam Braided 25mm-3000mm

Flexible Metal Hose Pipe Steam Braided 25mm-3000mm
Flexible Metal Hose Pipe Steam Braided 25mm-3000mm
Flexible Metal Hose Pipe Steam Braided 25mm-3000mm
Flexible Metal Hose Pipe Steam Braided 25mm-3000mm
Flexible Metal Hose Pipe Steam Braided 25mm-3000mm
Model
DN25-DN3000

Item specifics

Place of Origin
Cangzhou, Hebei, China
Connection
Welding or flange
Pressure
6 bar - 40 bar
Normal Size
DN4-DN400
Application
Air, Water, Oil, Weak Acid and Alkali, Juice etc.
Brand
JS FITTINGS

Product review

Description

Flexible Metal Hose Pipe Steam Braided 25mm-3000mm
Flexible Metal Hose
Stainless Steel matal hose is a kind of flexible hose with high quality in modern industrial pipeline.The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Flexible Metal Hose Pipe Steam Braided
Characters of Stainless Steel Matal Hose
Stainless Steel  metai hose has good softness, anti-fatigue, high pressure resistant, high and low temperature resistant, corrosion resistant and other characters, comparing with other hoses(rubber and plastic hose),the service life of metal hose is much higher, so it has high comprehensive economical benefits.And wtih the development of modern industry, the demand for hig pressure resistance and high temperature resistant bellows metal hose (corrugated metal hose) is also increasing.

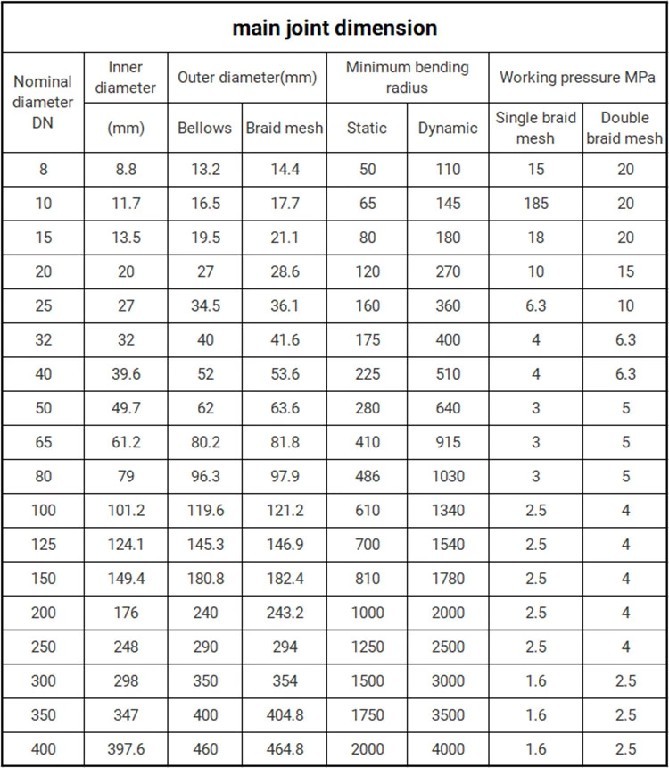

Specification of Metal Hose

specification of metal hose
specification of metal hose

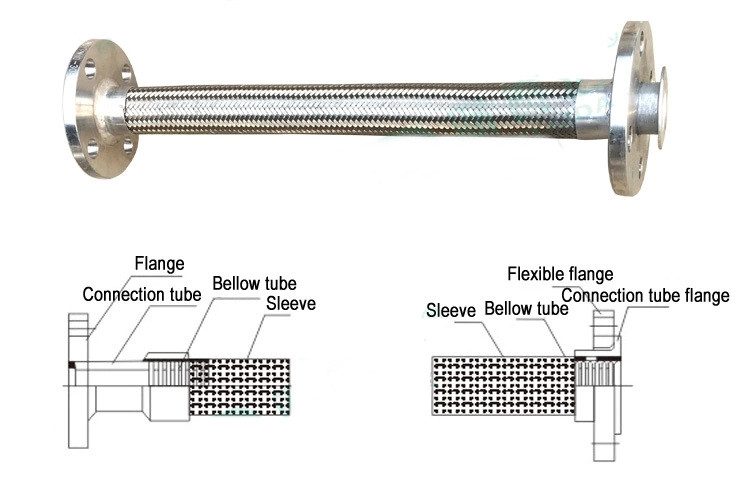

Details of Metal Hose
Details of metal hose
