Model
JS-E

Item specifics

Brand
JS FITTINGS
Surface treatment
Black painting
Ends
Bevel ends
Thickness
Sch 10, sch20, sch 40, sch 80, sch 160
Type
LR, SR
Standard
ASME B 16.9, ASME B 16.28

Product review

Description

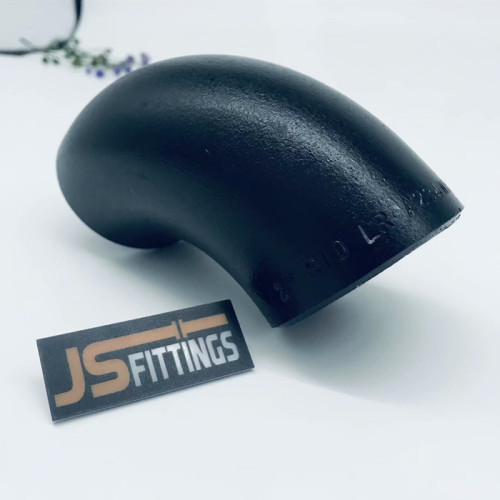

Carbon Steel Elbow Manufacturer
Carbon Steel Pipe Elbow is a most common type of CS fitting used to join pipe or tubing to allow a change of direction, usually a 90° or 45° angle, though Carbon Steel Short Radius Elbow are also used in piping system. All top manufacturers use Carbon Steel Elbow Cold Forming Machine in India, Europe, China & Korea. Carbon Steel Elbows ends may be machined for butt welding , threaded , or socketed , so the elbows are consist of butt weld, thread elbow, socket elbow and other series.

Specification of Carbon Steel Elbow Material

MaterialPipeElbow Fitting
Carbon SteelA106 Gr AA234 Gr WPA
A106 Gr BA234 Gr WPB
A106 Gr CA234 Gr WPC
Carbon Steel
Alloy
High-Temp
A335 Gr P1A234 Gr WP1
A335 Gr P11A234 Gr WP11
A335 Gr P12A234 Gr WP12
A335 Gr P22A234 Gr WP22
A335 Gr P5A234 Gr WP5
A335 Gr P9A234 Gr WP9
Carbon Steel
Alloy
Low-Temp
A333 Gr 6A420 Gr WPL6
A333 Gr 3A420 Gr WPL3

Carbon Steel Elbow Grade

  • ASTM/ ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Elbow
  • Low temperature Steel: A420 WPL3 / A420 WPL6 Elbow

Sizes of Carbon Steel Elbow

Size range: 1/2 to 56 inches (DN 15 to DN 1,400mm), 22.5 Deg, 45 Deg, 90 Deg, 180 Deg
